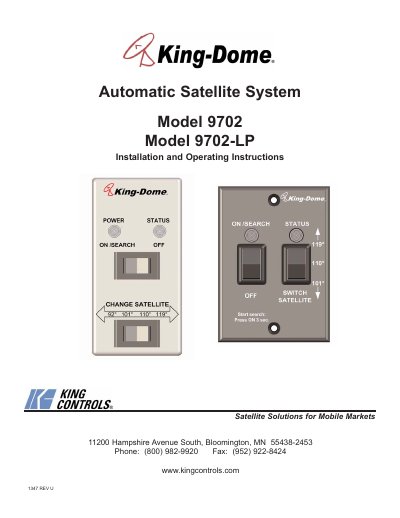

This document is the instruction manual for King-Dome Automatic Satellite System, which introduces the composition, installation, operation and maintenance of the system.
The document serves as a comprehensive guide for the King-Dome Model 9702 Automatic Satellite System. It details the system's two main components: the Dome (Antenna) Unit located on the vehicle roof and the Controller located inside the vehicle. The manual covers essential definitions such as azimuth, elevation, and signal strength to assist with proper setup.
The system requires an ATV, a satellite receiver, and a program subscription in addition to the unit itself.
The installation requires a 28 inch diameter mounting area on the roof.
