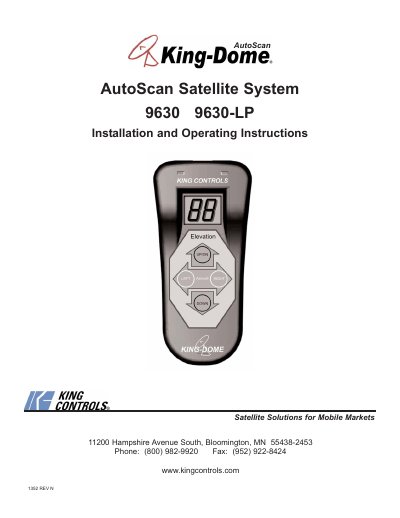

This document is about the installation and operation instructions of King-Dome AutoScan Satellite System 9630 9630-LP
This manual covers the installation and operation of the King-Dome AutoScan Satellite System, which consists of a dome unit (antenna) mounted on the vehicle roof and an internal controller. The system is designed for mobile markets to provide access to satellite television services from various providers including DIRECTV, Dish Network, and Bell ExpressVu.
The document provides detailed steps for unpacking the kit, removing shipping restraints, selecting a proper mounting location on the vehicle roof, and connecting the dome unit to the receiver and controller. It also includes definitions of technical terms such as azimuth and elevation, operational procedures for store/recall positions, diagnostic information, maintenance guidelines, and warranty details.
| Mounting Diameter Required | 28 inch diameter mounting area |
|---|
The dome unit must be mounted on the centerline of the vehicle to reduce electronic level compensation.
The kit includes a dome unit, an external wire harness, RG6 coaxial cable, and a controller.
You need a drill with a bit set, a tape measure, a 7/16" open end wrench, adhesive sealant, appropriate fasteners, and a 5/32" allen wrench.
The dome unit requires a 28 inch diameter mounting area on the centerline of the vehicle.
