L2N7002LT1 Small Signal MOSFET 60 V 115 mA N Channel SOT 23 Guide(1)

The 2N7002L is a small signal N-channel MOSFET from Semiconductor Components Industries, LLC. It has a maximum rated voltage of 60 V and a maximum rated current of 115 mA. It is packaged in a SOT-23 package.

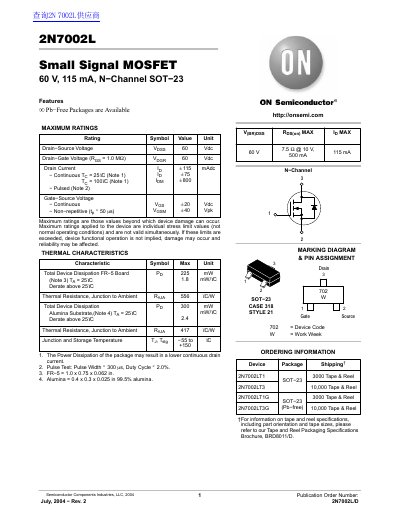

L2N7002LT1 Small Signal MOSFET 60 V 115 mA N Channel SOT 23 Guide(1) - cover page
Brand
L2N7002LT1
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
4
File format
PDF
File size
59 KB
Published
12 July, 2012
Updated
30 September, 2023
MD5 checksum
1EDFB66E3670931B2348DABC85F833AE
PDF
L2N7002LT1 Small Signal MOSFET 60 V 115 mA N Channel SOT 23 Guide(1) PDF

About this manual

This document provides a comprehensive technical overview of the 2N7002L N-channel small signal MOSFET. It specifies maximum ratings such as a 60 V drain-source voltage and 115 mA continuous drain current, along with detailed electrical characteristics including threshold voltage and on-state resistance.

What's inside

  • Maximum Ratings
  • Thermal Characteristics
  • Electrical Characteristics
  • Dynamic Characteristics
  • Body-Drain Diode Ratings
  • Typical Electrical Characteristics
  • Package Dimensions
  • Ordering Information

Specifications

Drain-Source Voltage60 Vdc
Thermal Resistance, Junction to Ambient556 °C/W

Frequently asked questions

What is the maximum drain-source voltage for the 2N7002L?

The maximum drain-source voltage is 60 Vdc.

Download PDF (59 KB)
