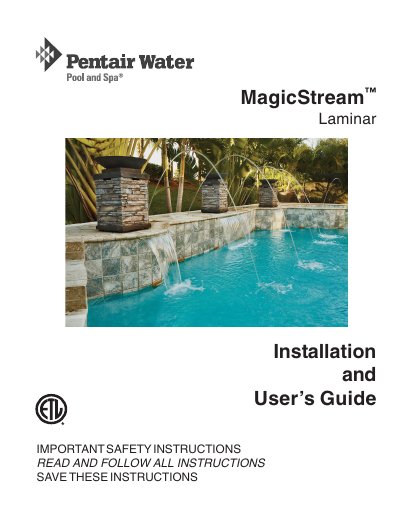

Installation and User's Guide for MagicStream™ Laminar. It includes important safety instructions, installation, setup and operation, maintenance and troubleshooting, and removal and replacement.
The Pentair MagicStream Laminar is a 12 VAC powered water feature designed to create a clear, turbulence-free stream of water. It can be equipped with a fiber optic cable or an LED light engine to produce multi-colored light shows or single-color effects. The unit features a built-in solenoid 'thumper' for random stream wrinkles and a patented light enhancer.
| Maximum Arc Height | seven feet |
|---|---|
| Maximum Distance | eight feet |
| Required Water Supply | 10 gpm with 16 ft of head |
| Recommended Filter | 20 micron cartridge filter |
| Supply Pipe Size | 1" Sch40 PVC pipe |
| Throttling Valve Size | 1" ball or globe |
| Drain Line Size | 1-1/2" |
| Fiber Optic Strands | 150-170 strands |
| LED Cable Length | 100' |
| Transformer Wattage | 100 Watt |
| Maximum System Pressure | 50 PSI |
It must be installed by a licensed or certified electrician or a qualified pool serviceman in accordance with the National Electrical Code.
A 20 micron cartridge filter is recommended; do not use a DE or Sand filter.
The Laminar can reach a maximum height of seven feet.
Six Laminars can be powered with one transformer.
