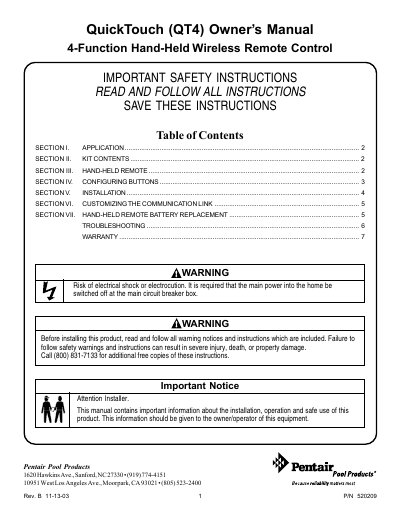

QuickTouch (QT4) Owner’s Manual 4-Function Hand-Held Wireless Remote Control. This manual contains important information about the installation, operation and safe use of this product.
The Pentair QT4 is a 4-function hand-held wireless remote control designed to be used with the IntelliTouch Pool/Spa Control System. It allows the user to activate four remote control circuits, typically for spa circulation and auxiliary equipment such as lights, jet pumps, or air blowers. The device features ON and OFF buttons for each of the four functions and can be customized to control specific circuits via the Indoor Control Panel or MobileTouch.
| Wireless Range | approximately 150 ft. line-of-sight |
|---|---|
| Battery Type | 3V lithium battery number CR2032 |
| Mounting Height | minimum of 5 ft. above ground level |
| Wire Gauge | four 22AWG conductor cable |
To activate a circuit, press and hold the appropriate "ON" button for at least a full second.
Yes, the remote may be used with wet hands, but it should never be submersed in water.
The remote requires a 3V lithium battery, specifically number CR2032 or equivalent.
The functional range is approximately 150 feet of line-of-sight.
