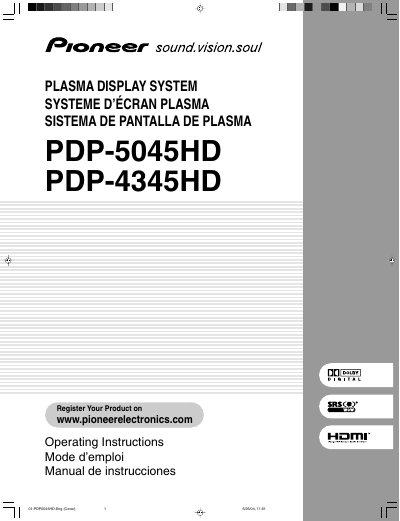

Pioneer PDP-5045HD/PDP-4345HD Plasma Display System Operating Instructions

About this manual

This manual provides comprehensive operating instructions for the Pioneer Plasma Display System models PDP-5045HD and PDP-4345HD. It covers essential safety precautions, installation steps for both the plasma display and media receiver, and detailed guidance on connecting various external devices such as VCRs, DVD players, game consoles, and personal computers via HDMI or i.LINK interfaces.

The guide details basic operations including turning power on/off, channel selection, volume control, and utilizing multiscreen functions. It also explains how to configure the menu system for AV and PC modes, set up TV tuners with auto or manual presets, manage parental controls, adjust picture and sound settings, and use timer presetting features.

What's inside

• Safety Precautions
• Supplied Accessories
• Part Names
• Installing the Plasma Display
• Connecting External Equipment
• Basic Operations
• Menu Setup
• Tuner Setup and Parental Control
• Picture and Sound Adjustments
• Timer Presetting

Specifications

Frequently asked questions

What safety precautions should be taken regarding water?

The apparatus is not waterproof; do not expose it to rain or moisture and do not put any water source near the unit.

How can I prevent electromagnetic interference with other appliances?

Use shielded cables and connectors when connecting the unit to other equipment.
