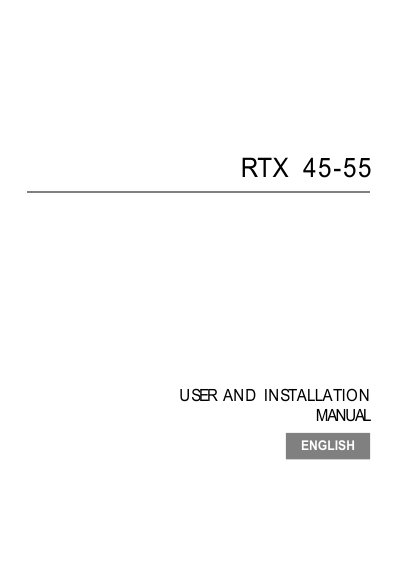

SIM2 RTX 45-55 DLP Projector User and Installation Manual

This manual is the user and installation manual for RTX 45-55, including product usage instructions, installation instructions, precautions, etc.

Brand: RTX
Category: Television
Document type: User Manual
Language: English
Pages: 21
File format: PDF
File size: 711 KB
Published: 11 July, 2012
Updated: 01 October, 2023
MD5 checksum: B10DA8F929224AB088C3308DB972AF3D
PDF: SIM2 RTX 45-55 DLP Projector User and Installation Manual PDF

About this manual

The SIM2 RTX 45-55 is a DLP projector system consisting of two units: the DigiOptical Image Processor and the Display. These units are connected via a fibre optic cable to transmit digital signals and control commands over distances of up to 500 meters. The system supports a wide variety of video sources, including DVD players, VCRs, satellite receivers, and computers, through multiple input options such as Composite, S-Video, Component/RGB, and DVI-D.

What's inside

Introduction
Installation
Connecting the Two Units
Connecting the Video Sources
Switching On and Off
Keypad
Remote Control
On Screen Menus
Maintenance and Cleaning
Troubleshooting Guide

Specifications

Display Resolution	1280x720 pixel DMD panel
Fibre Optic Link Distance	Up to 500 m
Power Supply	100-240 VAC, 50/60 Hz
Image Technology	DLP technology

Frequently asked questions

How are the two units connected?

The units are connected by a fibre optic cable that transmits the digital signal and control signals in both directions.

What is the maximum transmission distance?

The system allows transmission over distances of up to 500 meters without interference or attenuation.
