Lowrance Radar Operation Instruction Manual

This document is the Radar Operation Instruction Manual for Lowrance Electronics, Inc., providing information on radar setup and operation.

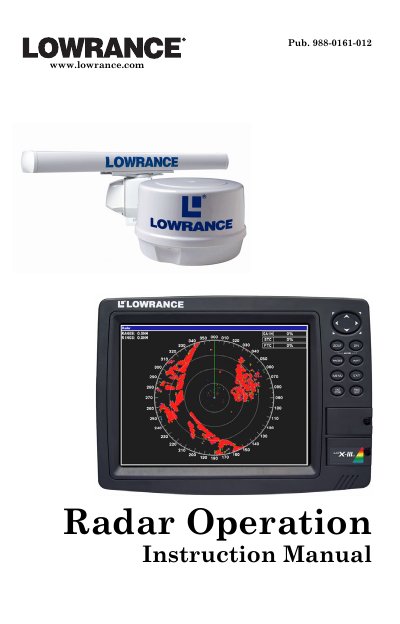

Lowrance Radar Operation Instruction Manual - cover page
Brand
Radar
Category
Vehicle GPS
Document type
User Manual
Language
English
Pages
68
File format
PDF
File size
2 MB
Published
11 July, 2012
Updated
29 September, 2023
MD5 checksum
6657BF52E2679C52D30B360072E833A6
PDF
Lowrance Radar Operation Instruction Manual PDF

About this manual

This document is the Radar Operation Instruction Manual for Lowrance marine radar units. It covers the use of radars with RIM 200 interface modules and compatible display units such as LCX-25c, GlobalMap series, and X-series sonar/GPS combos. The manual includes procedures for updating display software to ensure compatibility with the RIM 200 module.

What's inside

  • Warnings and Cautions
  • Introduction
  • Models Covered
  • Update Display Unit Software
  • Radar Setup
  • Basic Operation
  • Advanced Operation
  • Radar Interpretation

Frequently asked questions

What display units are covered by this manual?

This manual covers radar-compatible display units including LCX-25c, LCX-26e HD, LOX-27e, GlobalMap 5200c through 9800e HD GPS units, and X-series sonars.

Which radar scanner units are supported?

The manual supports LRA-1000, LRA-1500, and LRA-2000 radomes, as well as LRA-4000 and LRA-5000 open array radars.
