The data table provides the performance data of the G-BH1 900 side channel compressor, including flow rate, pressure difference, power consumption and temperature rise.

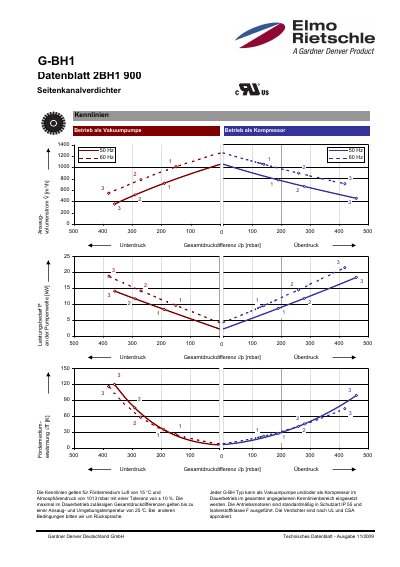

This document is a technical datasheet for the Gardner Denver 2BH1 900 side channel compressor (Seitenkanalverdichter). It provides performance curves for the unit operating as both a vacuum pump and a compressor, along with specific operating conditions such as air temperature and atmospheric pressure.
The datasheet lists detailed technical specifications for various motor configurations, including frequency, voltage, current, power, vacuum limits, sound pressure levels, and weight. It also notes that the motors are standardly rated IP 55 with insulation class F and that the compressors are approved by UL and CSA. This manual is written in German.
| Product Type | Side Channel Compressor |
|---|---|
| Motor Protection Class | IP 55 |
| Certifications | UL and CSA |
| Standard Voltage (50Hz) | 345-415 V |
| Standard Voltage (60Hz) | 380-480 V |
Yes, every G-BH type can be used as a vacuum pump and/or as a compressor in continuous operation within the specified performance curve range.
The curves apply to a medium of air at 15 °C and atmospheric pressure of 1013 mbar, with a tolerance of +10 %.
The maximum allowable total pressure differences apply up to an intake and ambient temperature of 25 °C.
