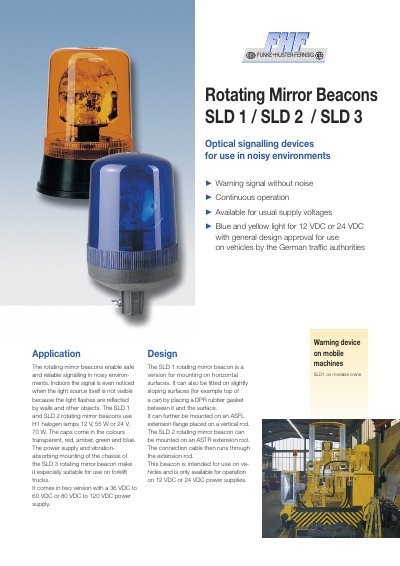

The FUNKE+HUSTER•FERNSIG Rotating Mirror Beacons SLD 1 / SLD 2 / SLD 3 are optical signalling devices designed for use in noisy environments. They provide warning signals without noise and can operate continuously. These beacons are available for usual supply voltages and have general design approval for use on vehicles by the German traffic authorities. The SLD 1 and SLD 2 rotating mirror beacons use H1 halogen lamps with either 12 V, 55 W or 24 V, 70 W. The caps come in transparent, red, amber, green, and blue colors. The SLD 3 rotating mirror beacon is specifically suitable for use on forklift trucks due to its power supply and vibration-absorbing mounting. It is available in two versions with power supply ranges of 36 VDC to 60 VDC or 80 VDC to 120 VDC.
The document describes the FHF SLD series of rotating mirror beacons designed to provide safe and reliable signaling in noisy environments. These devices reflect light flashes off walls and objects, making them visible even when the light source itself is not directly seen. The range includes models for general use (SLD 1, SLD 2) and a specialized version for forklift trucks (SLD 3).
| Protection degree | IP 54 (IEC 529) |
|---|---|
| Operating position | Mounted vertically on a horizontal surface, extension rod, wall holder, etc. |
| Reflector speed | Approx. 180 rpm |
| Operating temperature range | -20°C to +50 °C |
| Storage temperature range | -30°C to +70°C |
The caps come in transparent, red, amber, green, and blue.
Yes, its power supply and vibration-absorbing mounting make it especially suitable for this purpose.
They are designed for continuous operation.
