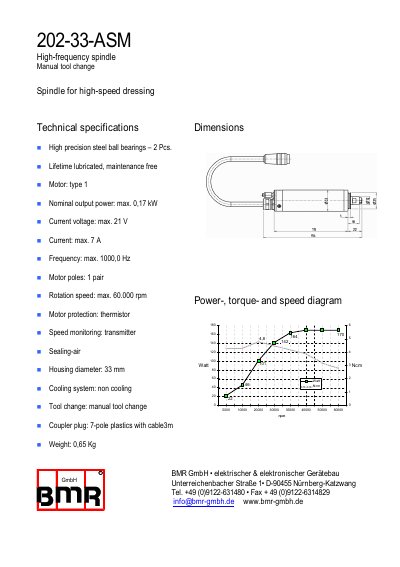

This document describes the 202-33-ASM high-frequency spindle with manual tool change, which features high-speed dressing and dimensions technical specifications.
The BMR 202-33-ASM is a high-frequency spindle designed for manual tool change and high-speed dressing applications. It features high precision steel ball bearings and is equipped with a thermistor for motor protection and a transmitter for speed monitoring.
The unit operates with a nominal output power of max. 0.17 kW and a current voltage of max. 21 V. It achieves a maximum rotation speed of 60,000 rpm and has a housing diameter of 33 mm. The spindle weighs 0.65 Kg and utilizes a 7-pole plastics coupler plug with a 3m cable. This manual is written in German.
| Nominal output power | max. 0,17 kW |
|---|---|
| Current voltage | max. 21 V |
| Current | max. 7 A |
| Frequency | max. 1000,0 Hz |
| Rotation speed | max. 60.000 rpm |
| Housing diameter | 33 mm |
| Weight | 0,65 Kg |
| Tool change | manual tool change |
The maximum rotation speed is 60,000 rpm.
The maximum current voltage is 21 V.
This spindle requires a manual tool change.
