This document is a technical data sheet for the GNRFZE 200M/2 AC asynchronous motor. It includes parameters such as the motor's model, power, voltage, frequency, current, and speed.

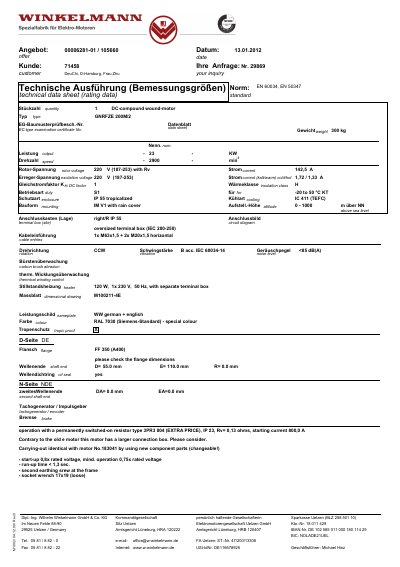

This document is a technical data sheet (rating data) for a DC-compound wound-motor of type GNRFZE 200M/2 manufactured by Winkelmann. The motor has a rated output of 23 kW and a speed of 2900 rpm, designed for operation with a rotor voltage and excitation voltage of 220 V.
Key specifications include an enclosure class of IP 55 (tropicalized), insulation class KT IC 411 (TEFC), and a weight of 300 kg. The motor features a terminal box size IEC 200-250, carbon brush abrasion monitoring, thermal winding control, and a heater for standstill protection. This manual is written in German.
| Type | GNRFZE 200M/2 |
|---|---|
| Output Power | 23 kW |
| Speed | 2900 rpm |
| Rotor Voltage | 220 V (187-253) |
| Excitation Voltage | 220 V (187-253) |
| Rated Current | 142,5 A |
| Weight | 300 kg |
| Enclosure Class | IP 55 tropicalized |
| Insulation Class | KT IC 411 (TEFC) |
| Cooling Method | IM V1 with rain cover |
The rated output power is 23 kW.
The motor has a protection class of IP 55 and is tropicalized.
