The motor model is LTX32-32NM, the power is 6.30kW, the rated voltage is 350V, the rated frequency is 100Hz, the rated speed is 1/min, the rated current is 0.81A, the efficiency is 83.0%, the protection class is IP54, and the rated braking torque is 32Nm.

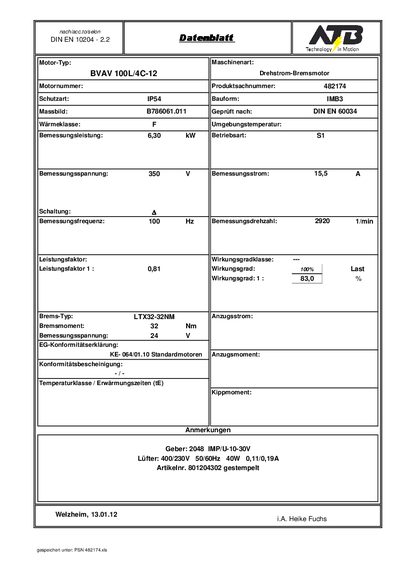

This document is a technical datasheet for the ATB BVAV 100L/4C-12, a three-phase brake motor (Drehstrom-Bremsmotor). The motor is designed for industrial applications with a rated power of 6.30 kW and a rated voltage of 350 V.
Key specifications include a rated current of 15.5 A, a rated frequency of 100 Hz, and a rated speed of 2920 1/min. The motor features an IP54 protection class and IMB3 mounting form. It is equipped with an LTX32-32NM brake providing a holding torque of 32 Nm at 24 V. The motor has a warm class of F and a rated efficiency of 100% at full load. This manual is written in German.
| Motor Type | Three-Phase Brake Motor |
|---|---|
| Rated Power | 6.30 kW |
| Rated Voltage | 350 V |
| Rated Current | 15.5 A |
| Rated Frequency | 100 Hz |
| Rated Speed | 2920 1/min |
| Protection Class | IP54 |
| Mounting Form | IMB3 |
| Brake Type | LTX32-32NM |
| Brake Torque | 32 Nm |
| Brake Voltage | 24 V |
| Warm Class | F |
| Efficiency (Full Load) | 100% |
| Power Factor | 0.81 |
| Encoder | 2048 IMP/U-10-30V |
The rated power is 6.30 kW.
The motor includes an LTX32-32NM brake.
