Loher AG/EG-160L Three-Phase Motor Technical Data Sheet

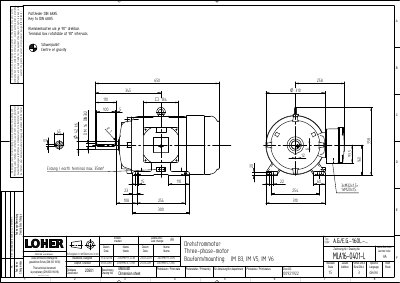

This is a drawing of MLA16-0401-L

Loher AG/EG-160L Three-Phase Motor Technical Data Sheet - cover page
Brand
Loher
Category
Motor
Document type
Datasheet
Language
German
Pages
1
File format
PDF
File size
72 KB
Published
11 July, 2012
Updated
30 September, 2023
MD5 checksum
1D3B0F67D1EE9A3DCBA932EFE1027FBA
PDF
Loher AG/EG-160L Three-Phase Motor Technical Data Sheet PDF

About this manual

This document provides technical details for the Loher AG/EG-160L three-phase motor. It includes a key to DIN 6885 standards and specifies that the terminal box is rotatable at 90° intervals.

The sheet lists specific dimensional data, such as a center of gravity height of 345 mm and an earth terminal maximum size of 35mm. The document also details mounting forms (IM B3, IM V5, IM V6) and includes drawing numbers and revision history. This manual is written in German.

What's inside

  • Key to DIN 6885
  • Terminal box rotation
  • Centre of gravity
  • Earth terminal specifications
  • Mounting forms
  • Drawing information

Specifications

Motor TypeThree-phase-motor
Terminal Box Rotationrotatable at 90° intervals
Earth Terminal Max Size35mm
Mounting FormsIM B3 IM V5 IM V6

Frequently asked questions

How can the terminal box be positioned?

The terminal box can be rotated at 90-degree intervals.

What is the maximum diameter for the earth terminal?

The earth terminal has a maximum diameter of 35mm.

What are the mounting forms available for this motor?

The available mounting forms are IM, B3, IM V5, and IM V6.
