BK MIKRO 4 is a control system for tool, object and free space monitoring. It offers two different operating modes with all the functions for monitoring the manufacturing steps, for example for tool breakage control or ejection/loading control during tool change.

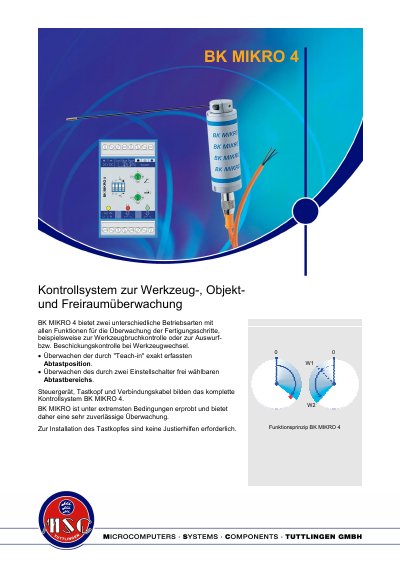

The MSC BK MIKRO 4 is a control system designed for tool, object, and free-space monitoring in manufacturing. It features two operating modes: monitoring specific positions learned via a 'Teach-in' procedure and monitoring a freely selectable scanning area defined by two switches. The system includes a control unit, a probe head, and a connecting cable. This manual is written in German.
| Protection Class | IP 67 |
|---|---|
| Probe Needle Length | 165 mm |
| Scanning Angle | 0° bis 270° |
| Operating Temperature | 0°C bis +80°C |
| Supply Voltage | 230 V AC, 120 V AC, 24 V DC |
| Dimensions | 40 x 75 x 107,5 mm |
| Switching Power | 500 VA / 60 W |
The system offers monitoring of exactly scanned positions via 'Teach-in' and monitoring of a freely selectable scanning area.
No, no calibration aids are required for the installation of the probe head.
The maximum speed of the needle is denoted as Vmax in the technical description.
