This document is a quotation for the SCN100L4 motor. The motor has a torque of 8.5 Nm and can operate at either 230V or 400V with a maximum current of 7.15A or 4.13A. It features an axial fan and weighs 23.1kg.

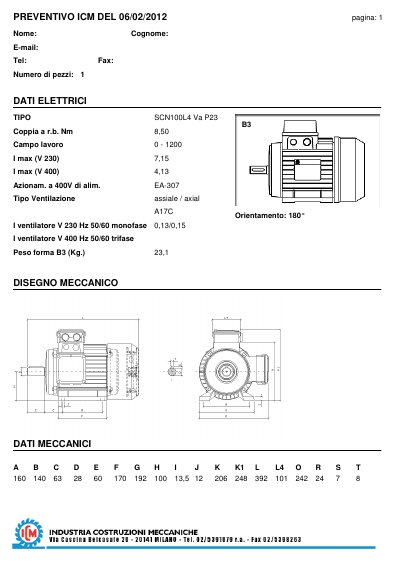

The provided text is a quotation (preventivo) dated February 6, 2012, from the manufacturer I.C.M. It details the technical data for an electric motor with the model number SCN100L4 Va P23.
The document lists electrical characteristics such as torque, operating speed range, and maximum current at different voltages (230V and 400V). It also specifies mechanical dimensions labeled A through T and indicates that the unit includes an axial fan for ventilation. This manual is written in Italian.
| Torque (rated) | 8.50 Nm |
|---|---|
| Operating Speed Range | 0 - 1200 rpm |
| Ventilation Type | Axial fan |
| Weight (Form B3) | 23.1 Kg |
The rated torque is 8.50 Nm.
The maximum current at 230 volts is 7.15 amperes.
The maximum current at 400 volts is 4.13 amperes.
The weight of the motor in form B3 is 23.1 kg.
