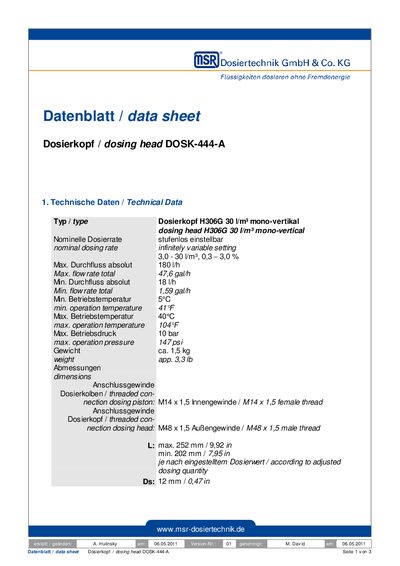

This document is about Dosierkopf / dosing head DOSK-444-A, including product model, name, nominal flow rate, maximum flow rate, minimum flow rate, minimum operating temperature, maximum operating temperature, maximum operating pressure, weight, dimensions, connection thread and other information.
This document is a datasheet for the MSR DOSK-444-A dosing head, a device designed to dispense liquids without external energy. It specifies the model as a mono-vertical dosing head with a nominal rate range of 3.0 to 30 m3/h (or 0.3 to 3.0 %). The device operates within a temperature range of 5°C to 40°C and a maximum pressure of 10 bar, with a maximum flow rate of 180 l/h. This manual is written in German.
| Nominal dosing rate | 3,0 - 30 m3/h, 0,3 - 3,0 % |
|---|---|
| Max. flow rate | 180 l/h |
| Min. flow rate | 18 l/h |
| Min. operation temperature | 5°C |
| Max. operation temperature | 40°C |
| Max. operation pressure | 10 bar |
| Weight | 1.5 kg |
| Dosing piston thread | M14 x 1.5 |
The maximum operation pressure is 10 bar or 147 psi.
The unit operates between a minimum of 5°C (41°F) and a maximum of 40°C (104°F).
The absolute maximum flow rate is 180 I/h or 47,6 gal/h.
