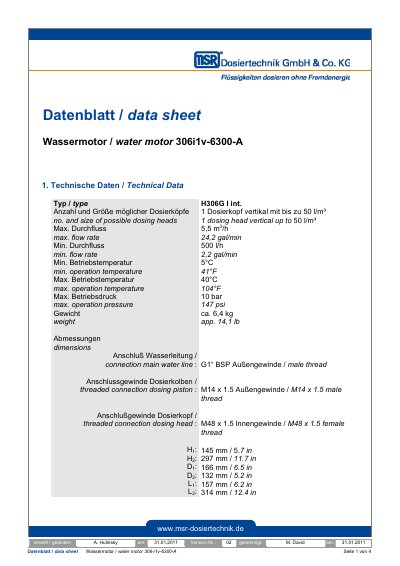

This document is a data sheet for the water motor model 306-i1v-6300-A. The motor has a maximum flow rate of 5.5 m3/h, a minimum flow rate of 500 l/h, a minimum operating temperature of 5°C, and a maximum operating temperature of 40°C. The maximum operating pressure is 10 bar. The motor weighs approximately 6.4 kg and has dimensions of 145 mm x 297 mm x 166 mm. The materials used for the motor include housing, covers, and internal parts.
This document is a datasheet for the MSR 306i1v-6300-A water motor, designed for dosing fluids without external energy. It provides technical data including maximum flow rates, operating temperatures, and pressure limits.
The datasheet also details the materials used for the housing, seals, and internal components, as well as the flow setup components such as the hydraulic drive and dosing piston acceptance. It includes a theoretical pressure loss curve and an illustration of the unit.
| Max. flow rate | 24.2 gal/min |
|---|---|
| Min. flow rate | 2.2 gal/min |
| Weight | ca. 6.4 kg |
| Connection main water line | G1" BSP male thread |
| Threaded connection dosing piston | M14 x 1.5 male thread |
| Threaded connection dosing head | M48 x 1.5 female thread |
