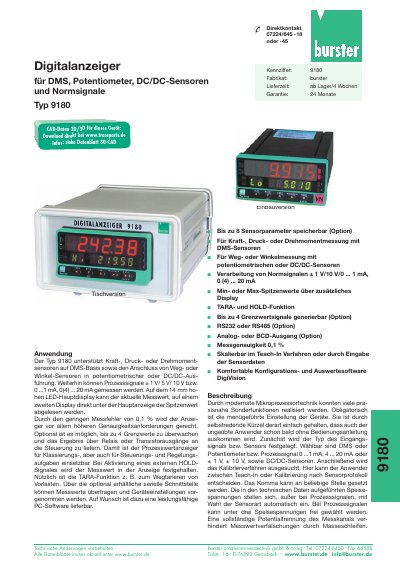

This document describes the features and characteristics of the Type 9180 digital indicator produced by burster präzisionsmesstechnik gmbh & co kg. The indicator is suitable for measuring DMS, potentiometer, DC/DC sensors, and standard signals. It supports force, pressure, or torque sensors and has high accuracy, the ability to monitor multiple limit values, and the option to transmit measurement values via a serial interface.
The Burster Type 9180 is a precision digital indicator designed to support DMS-based force, pressure, or torque sensors, as well as potentiometric or DC/DC output position or angle sensors. It features a high LED main display for current values and a secondary display for peak values (min/max). The device offers a measurement accuracy of 0.1% and supports various process signals including voltage (0...1V/5V/10V) and current (0...1mA/4...20mA).
The Type 9180 includes standard functions such as peak value storage, HOLD, TARA, and digital control inputs for reset, hold, and taro. Optional features include up to four limit value outputs via relays or transistors, serial interfaces (RS232/RS485), and analog outputs. The device is configurable via a menu-driven system using the Teach-In method or sensor protocol calibration and can be controlled by compatible software like DigiVision. This manual is written in German.
| Measurement Accuracy | 0.1 % |
|---|---|
| Resolution | 15 Bit |
| Operating Temperature | 0...50°C |
| Warm-up Time | 10 Minutes |
| Main Display Range | -99999...+99999 |
| Auxiliary Display Range | -99999...+99999 |
It supports DMS-based force/pressure/torque sensors and potentiometric or DC/DC output position/angle sensors.
Yes, it is possible to monitor up to four limit values and deliver results via relay or transistor outputs.
The device offers RS232 or RS485 as optional serial interfaces.
