The 9180 digital indicator can be used to measure and display the values of various measured variables, such as strain sensors, potentiometers, DC/DC sensors and standard signals. It has a compact desktop form factor that can be easily installed on a machine. The 9180 digital indicator has many practical features such as automatic zero calibration, four optional thresholds and internal storage.

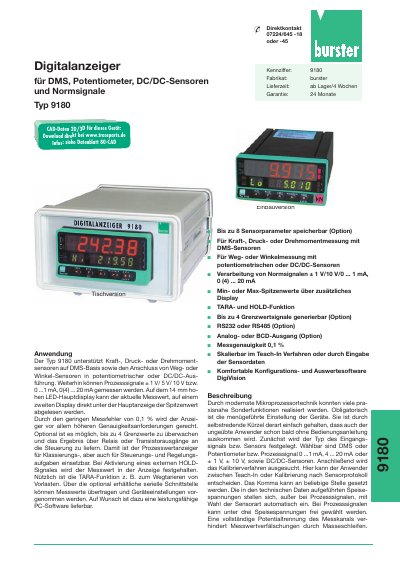

The Burster 9180 is a digital indicator designed for measuring force, pressure, or torque using DMS-based sensors, as well as displacement or angle sensors with potentiometric or DC/DC outputs. It features a 14 mm high LED main display for current values and a secondary display for peak values. The device offers a measurement accuracy of 0.1% and supports various process signals including 0...1 mA and 4...20 mA. This manual is written in German.
| Measurement Accuracy | 0.1 % |
|---|---|
| Resolution | 15 Bit |
| Temperature Coefficient | 50 ppm/K |
| Warm-up Time | 10 Minutes |
| Operating Temperature | 0...50°C |
| Main Display Height | 14 mm |
| Auxiliary Display Height | 8 mm |
| Measurement Rate | 16/s |
It supports force, pressure, or torque sensors on DMS basis, as well as displacement or angle sensors in potentiometric or DC/DC output.
Yes, it can measure process signals such as 0...1 mA, 0...20 mA, 1 V, and 10 V.
Yes, the TARA function is useful for zeroing offsets, such as tare loading.
Yes, a powerful PC software called DigiVision is available upon request.
