AYUX-HR153X350EJ1 is a threaded product with M6 thread and maximum torque of 2.5Nm. It has a capacitance of 15,000µµµµF, a rated voltage of 350V, and a surge voltage of 385V. The expected lifetime of the product is 5,000 hours at 85°C, and over 150,000 hours at 45°C. It also has other electrical and mechanical parameters.

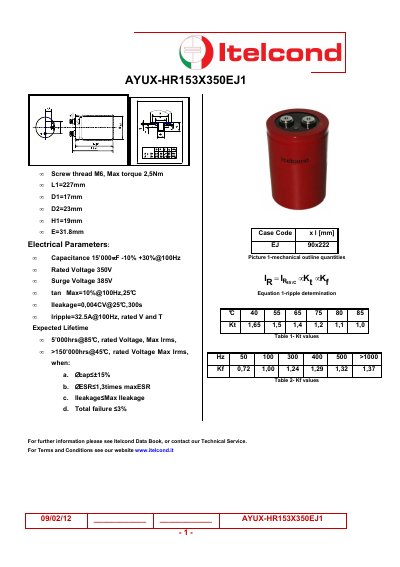

This document provides technical specifications for the ITELCOND model AYUX-HR153X350EJ1. It lists mechanical outline quantities such as screw thread size (M6), maximum torque (2.5Nm), and various height and diameter measurements.
The datasheet also details electrical parameters including capacitance of 15,000uF (-10% +30%), rated voltage of 350V, surge voltage of 385V, and expected lifetime under specific temperature conditions.
| Screw thread | M6 |
|---|---|
| Max torque | 2.5 Nm |
| Length L1 | 227 mm |
| Diameter Di | 17 mm |
| Diameter D2 | 23 mm |
| Height H1 | 19 mm |
| Dimension E | 31.8 mm |
| Capacitance | 15,000uF -10% +30% |
| Rated Voltage | 350 V |
| Surge Voltage | 385 V |
The expected lifetime is greater than 150,000 hours.
Conditions include rated Voltage, Max Irms, and specific limits on capacitance change, ESR, and leakage.
