The document describes the features and characteristics of ITELCOND's aluminum electrolytic capacitors, including high ripple current, high reliability, and long life.

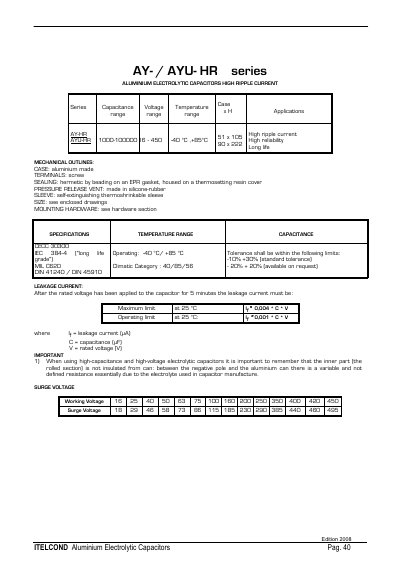

This document provides technical data for the ITELCOND AY-/AYU-HR series of high ripple current aluminium electrolytic capacitors. The series is designed for high reliability and long life, featuring hermetic sealing and a self-extinguishing thermoshrinkable sleeve. Key specifications include a temperature range of -40°C to +85°C and a capacitance tolerance of ±20% to ±30%.
| Leakage Current Limit (85°C) | 0.0004 * C * V |
|---|---|
| Working Voltage Range | 16V to 480V |
| Case Material | Aluminium |
| Terminal Type | Screw |
The maximum limit is 0.0004 * C * V at 85°C.
The standard operating temperature range is -40°C to +85°C.
Rated voltage must be applied for 5 minutes before the test.
The maximum torque for an M6 insert screw is 8.5 Nm.
