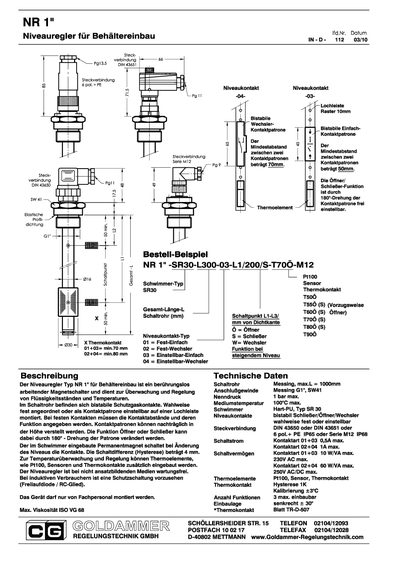

The document describes the Goldammer NR 1" as a non-contact magnetic switch tube designed for tank installation. It is used to monitor and control liquid levels and temperatures in non-aggressive media.
Key features include interchangeable contacts (fixed or adjustable) mounted on a perforated strip, with options for normally open or normally closed functions. The device supports additional temperature monitoring via Pt100 sensors or thermocouples and offers various connection types including DIN 43650/43651 plugs or M12 cables. This manual is written in German.
| Max. tube length (L) | 1000 mm |
|---|---|
| Connection thread | Messing G1" |
| Rated pressure | 1 bar max. |
| Max. medium temperature | 100°C |
| Switching current (Contact type 01+03) | 0.5A max. |
| Switching power (Contact type 01+03) | 10 W/VA max |
| Switching current (Contact type 02+04) | 1A max. |
| Switching power (Contact type 02+04) | 60 W/VA max |
| Max. voltage | 250V AC/DC |
The maximum tube length L is 1000mm.
Yes, contacts can be adjusted to fixed or adjustable settings on a perforated strip.
