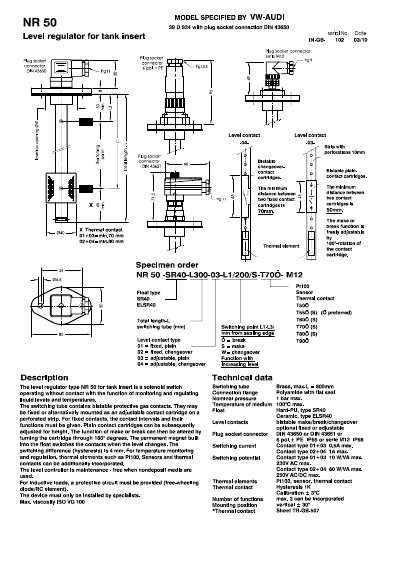

The Goldammer NR 50 is a level regulator for tank inserts designed as a solenoid switch that operates without contact. It features bistable protective gas contacts within a switching tube, which can be configured as fixed or adjustable contact cartridges. The device utilizes a permanent magnet built into a float to switch contacts when the liquid level changes, with a switching difference (hysteresis) of 4 mm.
| Switching tube | Brass, max. L = 800mm |
|---|---|
| Connection flange | Polyamide with flat seal |
| Nominal pressure | 1 bar max. |
| Temperature of medium | 100°C max. |
| Float | Hard-PU, type SR40 |
| Level contacts | Ceramic, type ELSR40 |
| Switching current (01+03) | 0.5A max. |
| Switching current (02+04) | 1A max. |
| Switching potential (01+03) | 10 W/VA max. |
| Switching potential (02+04) | 60 W/VA max. |
| Thermal elements | Pt100, sensor, thermal contact |
| Hysteresis | 4 mm |
| Calibration | + 3°C |
| Mounting position | vertical + 30° |
The maximum nominal pressure is 1 bar.
The maximum temperature of the medium is 100°C.
The switching difference (hysteresis) is 4 mm.
