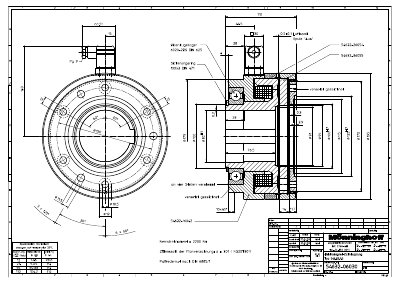

This document provides technical specifications for a mechanical component identified by the part number 546.32.4.5 from the manufacturer Maschinenfabrik. The text includes dimensional data, material references (such as DIN standards), and specific performance metrics like nominal torque and power rating.
Key parameters listed include a nominal torque of 2200 Nm and a gear ratio of 1:125.0108. The document also specifies surface finish requirements according to ISO 1302 and tolerance classes per ISO 2768-mH. This manual is written in German.
| Nominal torque | 2200 Nm |
|---|---|
| Gear ratio | 1:125.0108 |
The stated nominal torque is 2200 Nm.
All values are referenced to a reference temperature of 20°C.
