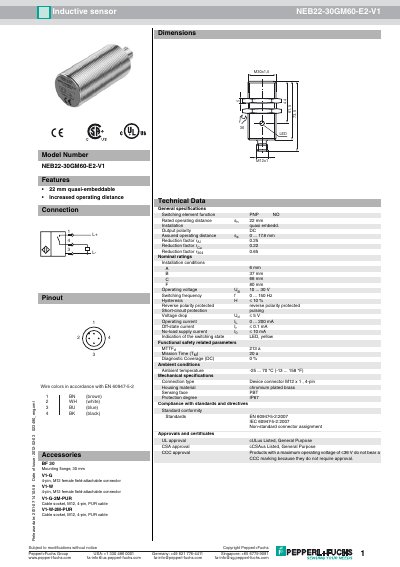

This document provides technical data for the Pepperl+Fuchs NEB22-30GM60-E2-V1 proximity sensor. It is a 22mm quasi-embeddable device featuring a PNP NO switching element and an assured operating distance of 22mm. The sensor is designed for installation in quasi-embeddable conditions with a reduction factor of 0.25.
| Quasi-embeddable dimension | 22mm |
|---|---|
| Assured operating distance | 22mm |
| Switching element function | PNP NO |
| Operating voltage | Up |
| Switching frequency | f |
| Hysteresis | H |
| Ambient temperature | -25 ... 70°C |
| Connection type | M12 x 1, 4-pin |
| Protection degree | IP67 |
| Standards | EN 60947-5-2:2007 |
The assured operating distance is 22mm.
The switching element function is PNP NO.
Yes, the sensor is reverse polarity protected.
The ambient temperature range is -25 to 70°C.
