This document introduces the features and characteristics of the Anankawa 320bar direct-acting four-way electromagnetic reversing valve, including connection dimensions, flow resistance, magnets, coils, and plugs.

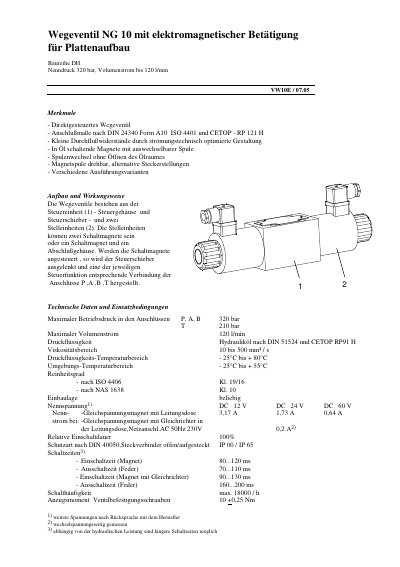

This document provides technical data for the HPS-Hydraulik Wegeventil (directional valve) series NG 10 with electromagnetic actuation. The valves are designed for plate mounting and feature a nominal pressure of 320 bar and a maximum flow rate of 120 l/min. This manual is written in German.
| Nominal Pressure | 320 bar |
|---|---|
| Maximum Flow Rate | 120 l/min |
| Fluid Temperature Range | -25°C to +80°C |
| Ambient Temperature Range | -25°C to +55°C |
| Nominal Voltage DC | 12V, 24V, 60V |
| Weight (Type A) | 5.6 kg |
| Weight (Type B) | 4.1 kg |
The nominal pressure is 320 bar.
It follows DIN 24340 Form A10 ISO 4401 and CBTOP - RP 121 H.
