This product is a direct-acting directional valve with the features of small size, low pressure drop, and high reliability. The product adopts DIN24340 standard connection interface and can be applied to various engineering machinery, metallurgical, mining, and oil fields.

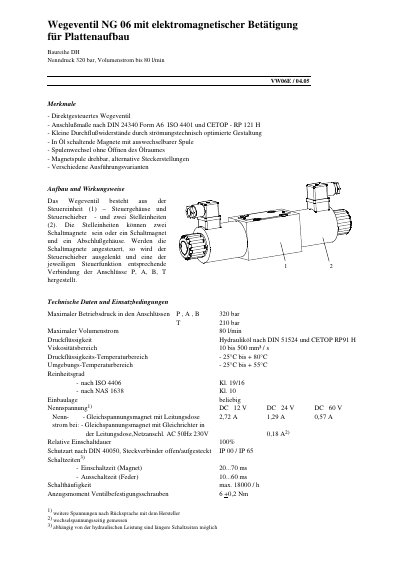

This document provides technical data for the HPS-Hydraulik WE 06 DH series of direct-acting directional valves. The valves feature a plate construction with electromagnetic actuation and are designed for a nominal pressure of 320 bar and a flow rate up to 80 l/min. They comply with DIN 24340 Form A6 and ISO 4401 standards. This manual is written in German.
| Nominal pressure | 320 bar |
|---|---|
| Maximum flow rate | 80 l/min |
| Fluid viscosity range | 10 to 500 mm2/s |
| Operating temperature range | -25°C to +80°C |
| Mounting pattern | DIN 24340 Form A6 |
| Weight (WE06DH.C) | 2.1 kg |
| Weight (WE06DH.A/B) | 1.45 kg |
The nominal pressure is 320 bar.
No, the mounting screws (M5x30) and seals are not included and must be ordered separately.
