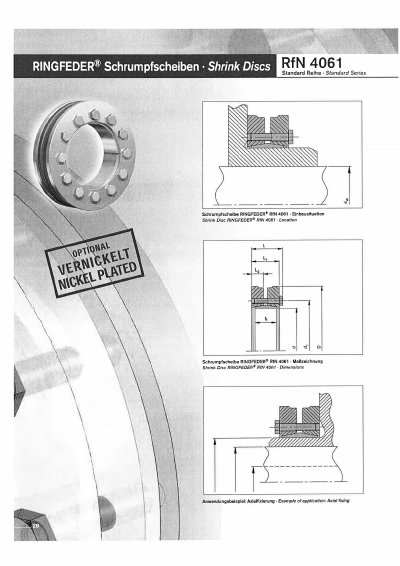

This document provides technical specifications for the Ringfeder RfN 4061 Standard Series of shrink discs. It includes dimensional drawings, application examples for axial fixing, and tables listing transmissible torques or axial forces based on thread quantity and screw tightening torque.
The text outlines the characteristic properties of this standard series, highlighting its suitability for high transmission values, simplified manufacture without keyways, easy mounting and removal using standard tools, and low susceptibility to contamination due to self-sealing contact surfaces.
| Inner Ring Feature | Slotted (Geschlitzter Innenring) |
|---|
It has low susceptibility to contamination because tightening the locking screws presses contact surfaces firmly together, preventing dirt and moisture ingress.
The document lists axial fixing as an example of its use.
Up to 4 Locking Elements can be connected in series.
