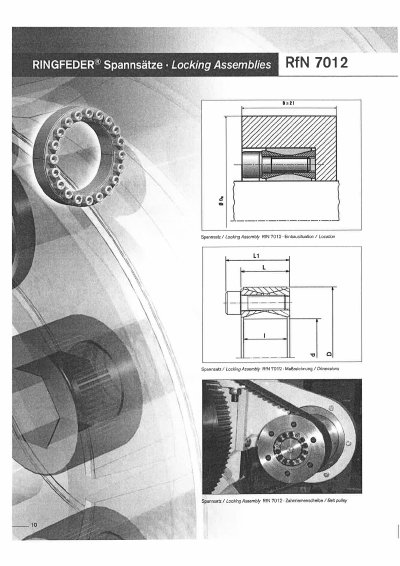

The Ringfeder RfN 7012 Locking Assembly is designed for applications in tight spaces, offering a compact form factor and tolerance compensation. It transmits high loads and torques, with multiple units capable of being arranged in series to add transmissible values. The assembly works without moving parts on the shaft and hub, ensuring it is free from wear and backlash, allowing for repeated clamping and release.
| Screw Grade | 12.9 |
|---|---|
| Recommended Shaft Tolerance | k9-h9 |
| Maximum Allowable Shaft Tolerance | k11-h11 |
Yes, up to 4 units can be used in series, and the transmissible torques and axial forces are added.
Yes, combined loads such as bending moments and radial loads can be transmitted.
It is suitable for chain wheels, levers, pulleys, slip-on gear mechanisms, belt drums, running wheels, and cable sheaves.
