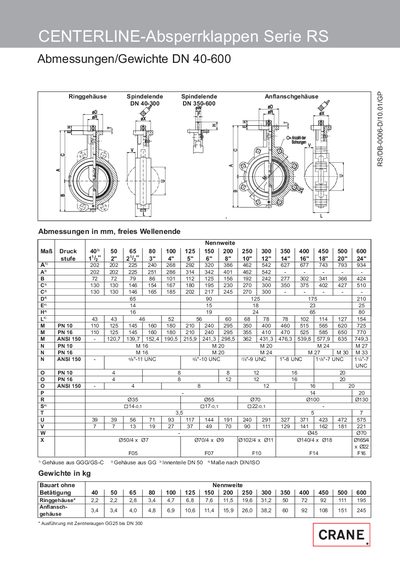

CENTERLINE-Absperrklappen Serie RS Abmessungen/Gewichte DN 40-600 RS/DB-0006-D/10.01/GP is the size and weight of the CENTERLINE-Absperrklappen Serie RS series.

Brand: Crane
Category: Other
Document type: Product Leaflet
Language: German
Pages: 2
File format: PDF
File size: 102 KB
Published: 10 July, 2012
Updated: 30 September, 2023
MD5 checksum: D5B063CC1A8D3D6E215B8C30D3F710F7
PDF: CRANE RS series technology data1 PDF

About this manual

This document provides dimensional data and weight specifications for Crane RS series butterfly valves. It covers dimensions for the housing and flange assembly without a nominal size, as well as for the valve body with a nominal size. The data is presented in millimeters for various pressure ratings (PN 10, PN 16, ANSI 150) and nominal sizes ranging from DN 40 to DN 600. This manual is written in German.

What's inside

Abmessungen/Gewichte DN 40-600
Klappe mit Handhebel
Klappe mit Getriebe
Klappe mit Revo Schwenkantrieb
Ringgehause
Anflanschgehause
Gewichte in kg
Betatigung

Specifications

Nominal Size Range	DN 40-600
Pressure Ratings	PN 10, PN 16, ANSI 150
Material	GGG/GS-C, GG

Frequently asked questions

What is the free shaft end length for a DN 100 valve?

The free shaft end length is 101 mm.

What is the weight of a DN 600 valve with a handwheel?

The weight is 13.6 kg.

What is the weight of a DN 600 valve with a REVO drive?

The weight is 318.0 kg.
