This product is a brake produced by Kendrion Power Transmission company. The brake is designed based on the principle of magnetism. It has the characteristics of high precision, high reliability, high stability and low noise

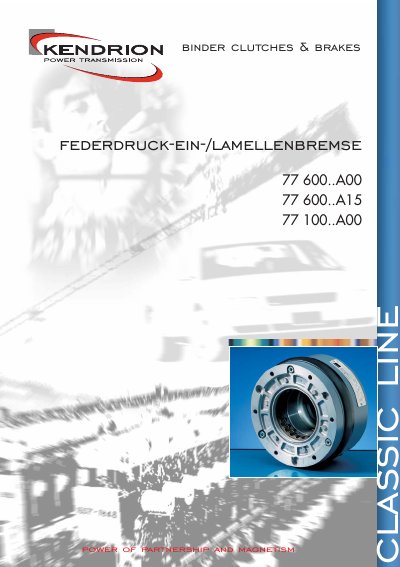

This document provides technical data for the Binder Classic Line of electromagnetic spring pressure brakes and clutches. The product range includes single-disc (Arbeitsbremse) and holding brake variants, as well as multi-disc brakes designed for vertical mounting with integrated spreader springs.
The datasheet covers specific series 77 600..A00, 77 600..A15, and 77 100..A00. It details construction features such as thermal class F insulation, IP 55 protection rating when mounted under motor air deflectors, and standard DC voltage options of 24V, 102V, or 178V. This manual is written in German.
| Torque Range (Single Disc Working Brake) | 4 - 240 Nm |
|---|---|
| Torque Range (Multi-disc Brake) | 17 - 800 Nm |
| Standard Voltages | 24 V, 102 V, 178 V |
| Mounting Orientation | Vertical |
They are designed for DC motors, handling technology, lifting and conveying technology, crane construction, and paper/printing machines.
Maximum switching work (Wa) must not be exceeded from a max. 1500 min-1 speed, and high speeds significantly reduce allowable switching work.
