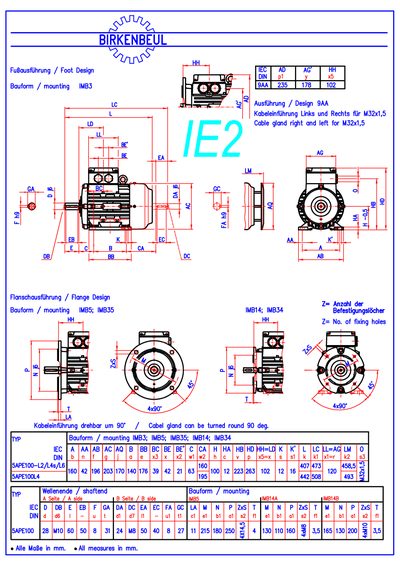

This document provides technical specifications and dimensional drawings for the Birkenbeul 5APE100 series of electric motors. It covers various design variants including IMB3 and IMB5 mounting types.
The datasheet details specific measurements in millimeters for different models, such as the 5APE100-L2/L4s/L6 and 5APE100L4. Key features include flexible cable gland options that can be rotated by 90 degrees and flange designs with varying numbers of fixing holes.
| Mounting Type (Bauform) | IMB3; IMB5; IMB35; IMB14; IMB34 |
|---|---|
| Cable Gland Size | M32x1.5 |
| Cable Gland Rotation | 90 degrees |
| Model Variant | 5APE100-L2/L4s/L6 |
| Model Variant | 5APE100L4 |
