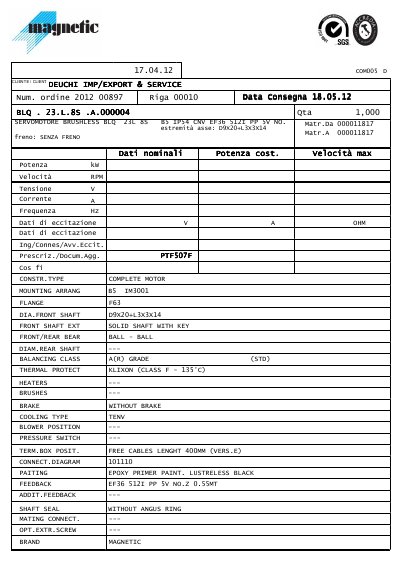

This document is a order from DEUCHI for 1 BLQ . 23.L.8S .A.000004 servomotors.
This document provides technical data for the Magnetic BLQ.23.L.8S.A.000004 brushless servomotor. It lists key performance parameters such as power, speed, voltage, and current, along with construction details including mounting type, shaft dimensions, and thermal protection class.
The datasheet also specifies the feedback unit configuration (EF36 512T PP), cooling type (TENV), and various mechanical features like the absence of a brake and the use of ball bearings. It references specific drawing numbers and patent information related to the epoxy primer and mounting connections.
| Product Type | Brushless Servomotor |
|---|---|
| Model Number | BLQ.23.L.8S.A.000004 |
| Quantity | 1,000 |
| Serial Number | 000011817 |
| Brake Type | Without Brake |
| Construction Type | Complete Motor |
| Mounting Arrangement | B5 |
| Flange Type | F63 |
| Front Shaft Extension | L3X3X14 |
| Bearings Type | Ball - Ball |
| Balancing Class | A(R) Grade (STD) |
| Thermal Protection Class | KLTXON (Class F - 135*C) |
| Cooling Type | TENV |
| Feedback Unit | EF36 512T PP |
| Feedback Resolution | 512T |
| Connection Diagram | 101110 |
The thermal protection is Class F, which is rated for a maximum temperature of 135*C.
The terminal box includes free cables with a length of 400MM.
The feedback unit operates at a voltage of 5V.
