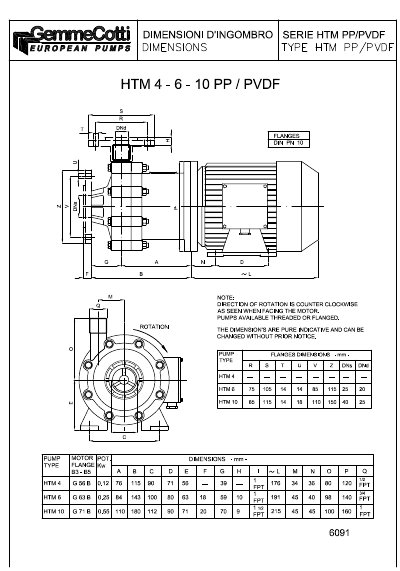

This document provides dimensional data for the GEMME HTM series of pumps, specifically models HTM 4, HTM 6, and HTM 10. The materials specified are PP (Polypropylene) and PVDF (Polyvinylidene Fluoride). The data includes dimensions for pump flanges and motor flanges. This manual is written in Italian.
| Available Materials | PP / PVDF |
|---|---|
| Pump Flange Type | BIN PN 10 |
| Rotation Direction | Counter Clockwise |
| Model HTM 4 Motor Power | 0.12 Kw |
| Model HTM 6 Motor Power | 0.25 Kw |
| Model HTM 10 Motor Power | 0.55 Kw |
The direction of rotation is counter clockwise as seen when facing the motor.
These pumps are available threaded or flanged.
