Product introduction: The motor model is Typ CD 100 L1 - 4 S, with a rated output power of 2.2 kW, a rated voltage of 220 / S 380 V, a rated current of 9 / 5.2 A, a rated speed of 1420 min-1, and a rated torque of 14.8 Nm.

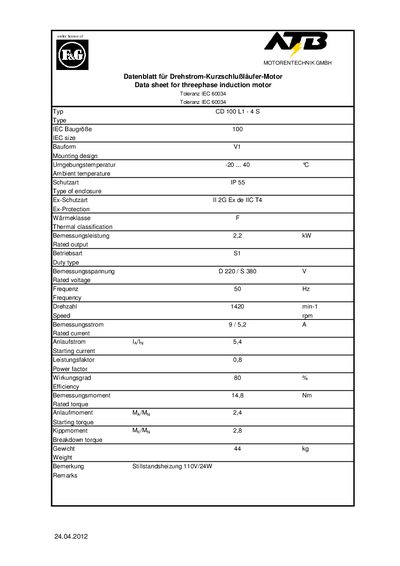

This document is a datasheet for the Motorentechnik CD 100L1-48 three-phase induction motor. It provides technical specifications including rated output, voltage, speed, and efficiency. This manual is written in German.
| Type | CD 100L1-48 |
|---|---|
| IEC size | 100 |
| Mounting design | v1 |
| Ambient temperature | -20 ... 40 Cc |
| Type of enclosure | IP 55 |
| Ex-Protection | Il 2G Ex de IC T4 |
| Thermal classification | B |
| Rated output | 2,2 kW |
| Duty type | S1 |
| Rated voltage | D 220/S 380 Vv |
| Frequency | 50 Hz |
| Speed | 1420 min-1 rpm |
| Rated current | 9/5,2 A |
| Starting current | lally 5,4 |
| Power factor | 0,8 |
| Efficiency | 80 % |
| Rated torque | 14,8 Nm |
| Starting torque | Ma/Mn 2,4 |
| Breakdown torque | Mk/Mn 2,8 |
| Weight | 44 kg |
The rated output is 2,2 kW.
The speed is 1420 min-1.
The rated voltage is D 220/S 380 Vv and the frequency is 50 Hz.
