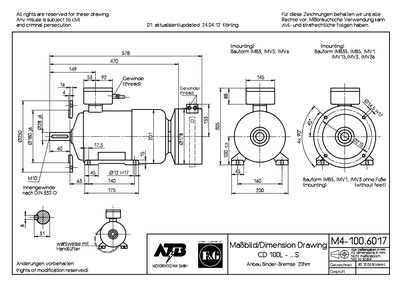

This document is a technical drawing (Mehrt) for the Binder CD 100L-...S brake. It provides dimensional data for various mounting forms, including IMB35, IMB5, IMV1, and others.
The drawing specifies thread sizes such as M4, M6, M8, M10, and M12, along with specific dimensions in millimeters for different configurations. It notes that the brake is not measureable (nicht meßstabilch) and reserves all rights against misuse.
The mounting torque for the Binder brake is 20 Nm.
The available mounting forms are IMB35, IMB5, IMV1, IMB3, IMV5, IMV6, IMV15, IMV3, and IMV36.
