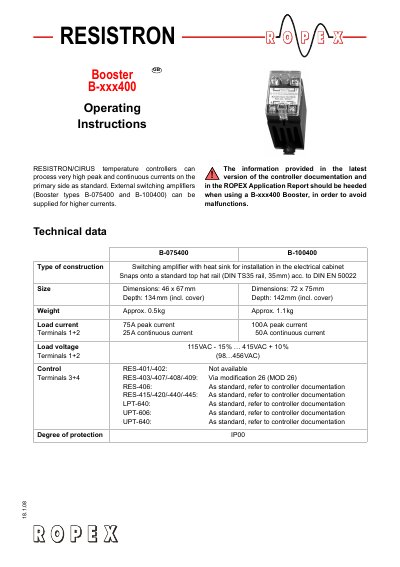

This document provides operating instructions for RESISTRON Booster B-xxx400 GB, including the features and characteristics of RESISTRON/CIRUS temperature controllers and precautions when using B-xxx400 Booster.
This document provides operating instructions for the RESISTRON/CIRUS temperature controller series, specifically focusing on the Booster models B-075400 and B-100400. These devices are switching amplifiers designed to handle high peak and continuous currents on the primary side of a transformer.
| Type of construction | Switching amplifier with heat sink for installation in the electrical cabinet |
|---|---|
| Mounting standard | Snaps onto a standard top hat rail (DIN TS35 rail, 35mm) acc. to DIN EN 50022 |
| B-075400 Load current | 75A peak current / 25A continuous current |
| B-100400 Load current | 100A peak current / 50A continuous current |
| Load voltage range | 115VAC - 15% ... 415VAC + 10% |
The connection cable between the switching amplifier and the temperature controller must not exceed 1 meter.
The article number for the B-100400 (100A, 400 VAC) Booster is Art. No. 885304.
