RESISTRON TR-xxx/1 is an impulse transformer. Suitable shock protection must be provided during installation to prevent water, cleaning solutions, and conductive fluids from entering the transformer. Incorrect installation impairs electrical safety.

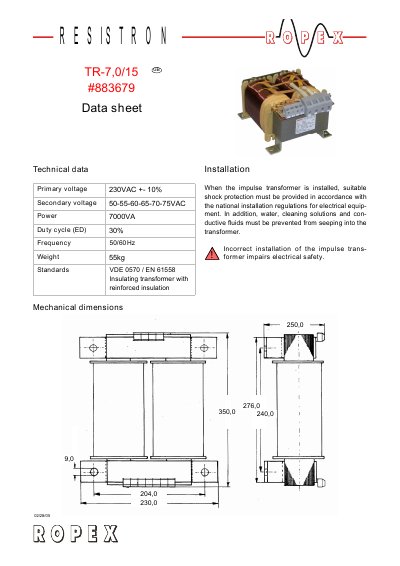

This document is a data sheet for the Resistron TR-7,0/15 insulating transformer. It lists key electrical specifications including a primary voltage of 230VAC, secondary voltages ranging from 50VAC to 75VAC, and a power rating of 7000VA. The unit operates at a frequency of 50/60 Hz and weighs 55kg.
| Primary voltage | 230VAC +- 10% |
|---|---|
| Secondary voltage | 50-55-60-65-70-75VAC |
| Power | 7000VA |
| Frequency | 50/60 Hz |
| Standards | VDE 0570 / EN 61558 |
The transformer is rated for a primary voltage of 230VAC with a tolerance of plus or minus 10%.
The transformer provides a power output of 7000VA.
