This product is a hydraulic components coupling, suitable for machine tool removable devices, with optional installation position and double flow direction.

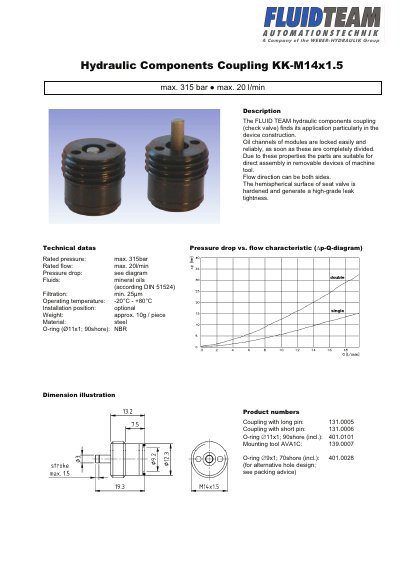

The document provides technical data for the FLUID TEAM hydraulic components coupling (check valve) model KK-M14x1.5. It specifies a maximum pressure of 315 bar and a rated flow of 20 l/min, designed for use with mineral oils according to DIN 51524.
| Rated pressure | max. 315 bar |
|---|---|
| Rated flow | max. 20 l/min |
| Operating temperature | -20°C - +80°C |
The coupling with long pin is 131.0005 and the coupling with short pin is 131.0006.
The device is suitable for mineral oils according to DIN 51524.
