This document provides technical specifications and features of the quick valve (base-mount) in the bielomatik 2-channel system. The valve is suitable for hydraulic systems with a maximum operating pressure of 20bar. It is electrically driven with a supply voltage of 24V DC. The valve weighs 225g and has a protection class of IP 65.

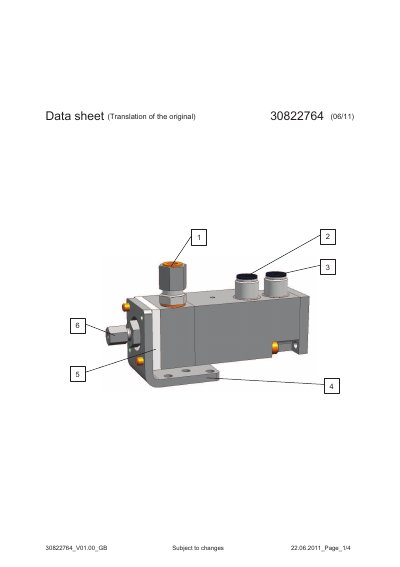

This document is a technical datasheet for the Bielomatik 30822764 Quick Valve (base-mount), designed specifically for use in Bielomatik 2-channel systems. It serves as a translation of the original German documentation.
The valve functions as a Type 2/2 control valve with an electrical drive and heating capability, operating on a supply voltage of 24 V DC. Key specifications include a maximum operating pressure of 20 bar, a displacement range of 5 to 500 ml/h, and protection class IP 65.
| Type | 2/2 control valve |
|---|---|
| Lubrication line connection | @6mm |
| Ambient temperature | -55C |
| Protection class | IP 65 |
| Weight | 225g |
| Operating pressure max. | 20bar |
| Displacement | 5 - 500 ml/h |
| Supply voltage | 24 V DC |
| Connection type | M12x1 connector, A-coded / 4-pole |
It is designed for use in Bielomatik 2-channel systems.
The drive type is electrical.
