This is a PDF document for a pump product. The pump model is NCL is 65/320, the rated power is 11 kW, the rated voltage is 400 V, and the rated frequency is 50 Hz.

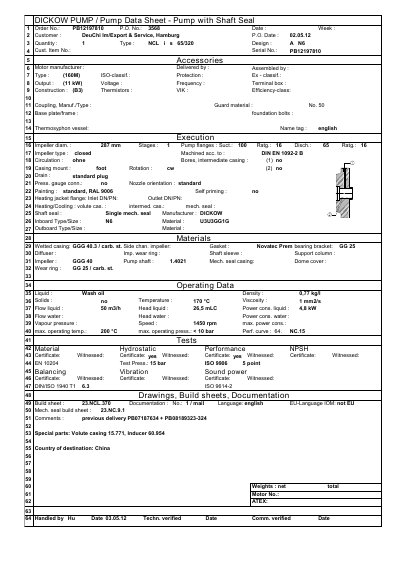

This document is a technical data sheet for the DICKOW NCL i s 65/320 centrifugal pump. It provides specific operating data for handling wash oil at a temperature of 170°C, with a viscosity of 1 mm²/s. The pump is designed with a 11 kW motor and operates at a speed of 1450 rpm.
| Type | NCL i s 65/320 |
|---|---|
| Output | 11 kW |
| Construction | B3 |
| Impeller diameter | 287 mm |
| Stages | 1 |
| Suction | 100 mm |
| Discharge | 65 mm |
| Flow liquid | 50 m³/h |
| Head liquid | 26.5 m |
| Power cons. liquid | 4.8 kW |
| Speed | 1450 rpm |
| Max. operating temp. | 200 °C |
| Max. operating press. | < 10 bar |
| Wetted casing material | GGG 40.3 / carb. st. |
| Diffuser material | GGG 40 |
| Impeller material | GGG 40 |
| Wear ring material | GG 25 / carb. st. |
| Pump shaft material | 1.4021 |
| Shaft seal type | Single mech. seal |
| Certificate | EN 10204 |
| Certificate | DIN/ISO 1940 T1 6.3 |
The maximum operating temperature is 200 °C.
The maximum operating pressure is less than 10 bar.
The wetted casing is made of GGG 40.3 / carb. st.
Yes, it is equipped with a single mechanical seal.
