This document is about the detailed information of NCL is 50/330 pump, including the pump's model, manufacturer, motor, accessories and other information.

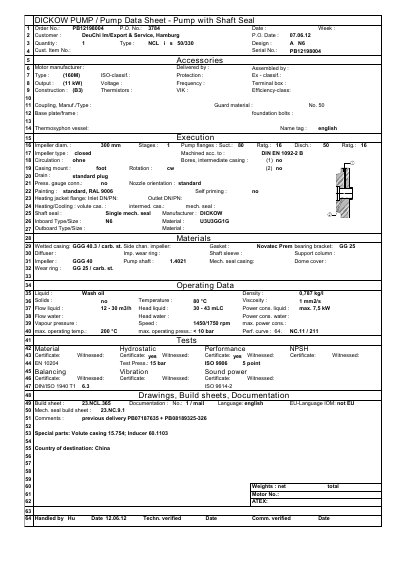

This document is a technical data sheet for the DICKOW NCL i s 50/330 centrifugal pump, designed for the handling of wash oil. The pump is configured with a single mechanical seal and a GGG 40.3 wetted casing, suitable for a maximum operating temperature of 80°C and a maximum operating pressure of less than 10 bar.
| Type | NCL i s 50/330 |
|---|---|
| Output Power | 11 kW |
| Construction Type | B3 |
| Wetted Casing Material | GGG 40.3 / carb. st. |
| Impeller Material | GGG 40 |
| Max Operating Temperature | 80 °C |
| Max Operating Pressure | < 10 bar |
| Flow Rate (Liquid) | 12 - 30 m3/h |
| Head (Liquid) | 30 - 43 m |
| Speed | 1450/1750 rpm |
| Shaft Material | 1.4021 |
The maximum operating temperature is 80 °C.
The maximum operating pressure is less than 10 bar.
The wetted casing is made of GGG 40.3 / carb. st.
Yes, it is equipped with a single mechanical seal.
