This document is about the technical data and installation instructions for the 49.1290.01 Axialkolbenmolor IAE 16W2BF1N. The product is an axial piston motor with specific specifications and usage requirements.
This document provides technical specifications for the Dusterloh AE 10 and AE 16 axial piston motors. It details key performance metrics such as displacement, maximum torque, and operating pressure for both models.

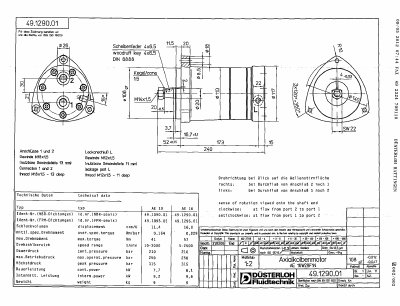

The data sheet includes specific information on connection types, rotation direction based on flow, and physical dimensions like shaft end and thread specifications. It also lists the weight and power ratings for intermittent and continuous operation. This manual is written in German.
| Max. Torque | 41 / 57 Nm |
|---|---|
| Speed Range | 10-3000 / 5-2500 1/min |
| Continuous Pressure | 210 bar |
| Max. Operating Pressure | 250 bar |
| Peak Pressure | 315 bar |
| Weight | 9 kg |
The maximum operating pressure is 250 bar.
The threads are M18x15 and M12x15.
The maximum torque for model AE 16 is 57 Nm.
