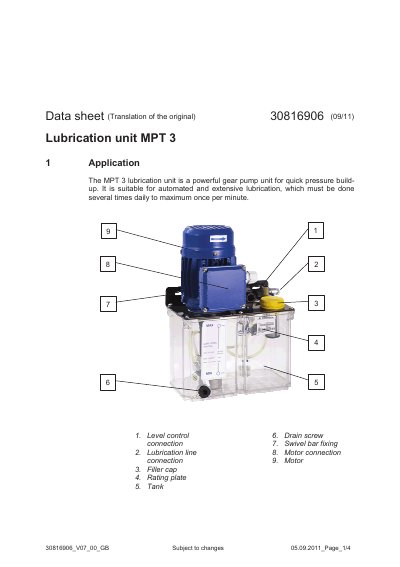

This data sheet introduces the basic information of MPT 3 lubrication unit, including model, specifications, application scenarios, technical parameters and so on
The Bielomatik MPT 3 is a powerful gear pump unit designed for automated and extensive lubrication tasks. It features quick pressure buildup capabilities suitable for applications requiring multiple cycles daily up to once per minute. The unit operates using an electrical drive with mineral oil or fluid grease as the operating medium.
| Tank volume | 3.0 litre |
|---|---|
| Operating pressure | 50 bar |
| Displacement | 0.5 l/min |
| Supply voltage | 420 V |
| Power consumption | 90 W |
| Protection class | IP 54 |
The unit supports a viscosity range from 50 to 750 mm/s, covering NLGI grades 000-0.
The unit operates within an ambient temperature range of 0° to 40°C.
