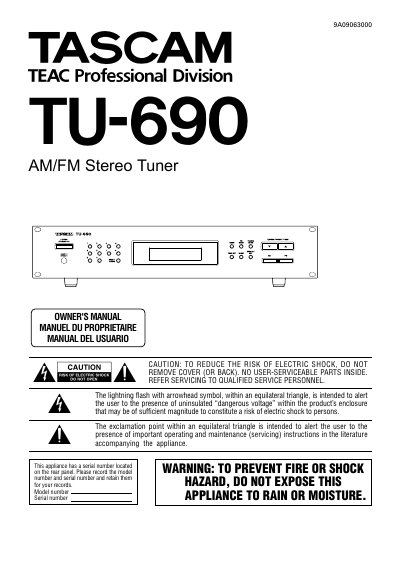

TASCAM TU-690 AM/FM Stereo Tuner Owner's Manual

About this manual

The document serves as an Owner's Manual for the TASCAM TU-690 AM/FM Stereo Tuner. It provides essential safety warnings regarding electric shock and moisture exposure, along with FCC compliance information for Class B digital devices.

The guide details installation procedures including voltage selection (120V/230V), antenna connections, and amplifier interfacing. It also explains the operation of various controls such as Direct Tuning, Preset Tuning, Manual Memory Presetting, Sleep Timer, and Clock settings.

What's inside

• Important Safety Instructions
• Voltage Conversion
• Connecting Antennas
• Connection with an Amplifier
• Remote Control Unit
• Name of Each Control
• Radio Reception
• Direct Tuning
• Preset Tuning
• Setting the Clock

Frequently asked questions

What type of power supply should be used for this tuner in North America?

The unit must be operated only on a 120 V supply.

How should the voltage selector switch be adjusted for non-North American areas?

Use a flat-bladed screwdriver to set the switch to the 230V position.

What steps should be taken to prevent damage from lightning or power-line surges?

Unplug the product from the wall outlet and disconnect the antenna or cable system.
