This document is the correction manual for DP-02/DP-02CF products. It mainly corrects the errors in the manual, including the memory capacity, frequency response, and total harmonic distortion.

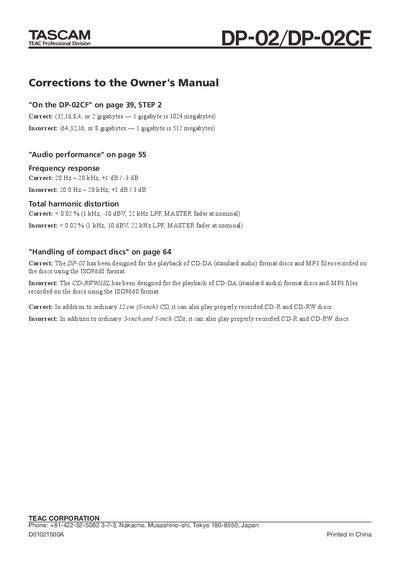

The PDF provides errata for the TASCAM DP-02/DP-02CF Owner's Manual. It corrects several specifications such as storage capacity, frequency response, total harmonic distortion, and CD playback information.
The corrections are issued by TEAC CORPORATION, the manufacturer of TASCAM products, and the document was printed in China. It serves as an official update to ensure users have accurate technical data for the device.
| Supported storage capacities | 32, 16, 8, 4, or 2 GB (1 GB = 1024 MB) |
|---|---|
| Frequency response | 20 Hz ~ 20 kHz, +1 dB / -3 dB |
| Total harmonic distortion | <0.02 % (1 kHz, -10 dBV, 22 kHz LPF, master fader nominal) |
| CD playback capability | Plays CD‑DA, MP3, CD‑R and CD‑RW (12 cm) discs |
The DP-02CF supports 32, 16, 8, 4, or 2 GB, with 1 GB equal to 1024 MB.
The device’s frequency response is 20 Hz to 20 kHz with a tolerance of +1 dB and -3 dB.
Total harmonic distortion is less than 0.02 % under the test conditions (1 kHz, -10 dBV, 22 kHz LPF, master fader nominal).
It can play standard CD‑DA audio discs, MP3 files on CD, and also properly recorded CD‑R and CD‑RW discs of the ordinary 12 cm size.
