This document describes the specifications and features of the AquaDip Rugged Waterproof TDS/°C meter, including measurement range, resolution, accuracy, temperature compensation, battery type, and life.

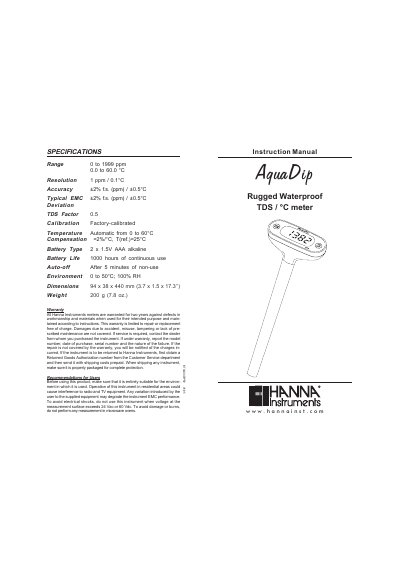

The document is the instruction manual for the Hanna Instruments AguaDip, a rugged and waterproof meter designed to measure Total Dissolved Solids (TDS) and temperature. The device is factory-calibrated and operates using two 1.5V AAA alkaline batteries, featuring an automatic shut-off function to conserve power.
The manual details the procedure for taking measurements by immersing the probe into the solution and switching between ppm and temperature readings using the RANGE key. It also explains the HOLD function for freezing readings and provides specific instructions for battery replacement, noting that the device should only be serviced in non-hazardous areas.
| Range | 0 to 1999 ppm |
|---|---|
| Temperature Range | 0.0 to 60.0 °C |
| Resolution | 1 ppm / 0.1°C |
| Accuracy | +2% f.s. (ppm) / +0.5°C |
| Battery Type | 2 x 1.5V AAA alkaline |
| Battery Life | 1000 hours |
| Dimensions | 94 x 38 x 440 mm |
| Weight | 200 g |
Press the RANGE key to view the temperature reading, and press it again to return to the ppm reading.
Press and hold the RANGE/HOLD key for about 3 seconds to freeze the current measurement on the LCD.
The meter uses two 1.5V AAA alkaline batteries.
The battery life is approximately 1000 hours of continuous use.
