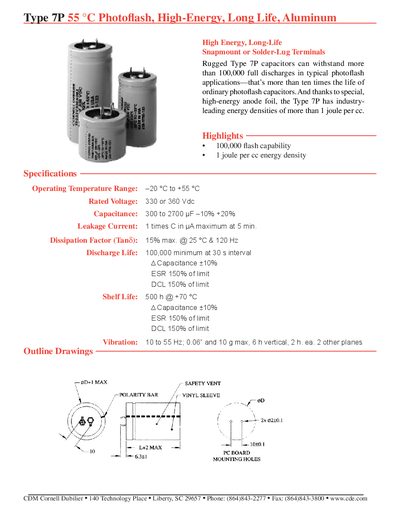

This document describes the specifications and characteristics of CDM Cornell Dubilier's Type 7P 55°C high-energy, long-life aluminum capacitors. These capacitors have a lifespan of over 100,000 full discharges, which is more than ten times the life of ordinary photo flash capacitors. Additionally, the Type 7P capacitors have industry-leading energy densities of over 1 joule per cc.
The Type 7P is a rugged aluminum photoflash capacitor designed for high‑energy, long‑life applications. It can endure more than 100,000 full discharges, offering an industry‑leading energy density of over 1 joule per cc thanks to a special high‑energy anode foil.
Key specifications include a wide operating temperature range, high rated voltage options, and a variety of capacitance values. The part features snap‑in or solder‑lug terminals and complies with RoHS requirements. Detailed terminal drawings, part numbers, and mechanical dimensions are provided for easy integration.
| Operating Temperature Range | -20 °C to +55 °C |
|---|---|
| Rated Voltage | 330 Vdc or 360 Vdc |
| Capacitance Range | 300 µF to 2700 µF |
| Leakage Current | 15 % max @ 25 °C, 120 Hz |
| Discharge Life | ≥100,000 flashes at 30 s interval |
| Shelf Life | 500 h @ +70 °C |
| Vibration Resistance | 10–55 Hz, 0.06 in and 10 g max |
The Type 7P can withstand at least 100,000 full discharge flash cycles.
It provides more than 1 joule per cubic centimeter of energy density.
It operates from –20 °C up to +55 °C.
