Conmet®1 (HI 98305), Conmet®2 (HI 98306), Conmet®3 (HI 98307) are conductivity meters with automatic temperature compensation. They have a measurement range of 0 to 1999 µS/cm, a resolution of 1 µS/cm, and an accuracy of ±2% F.S. The meters feature manual calibration, automatic temperature compensation from 0 to 50°C, and come with a conductivity probe, calibration solution bottle, screwdriver, and instructions.

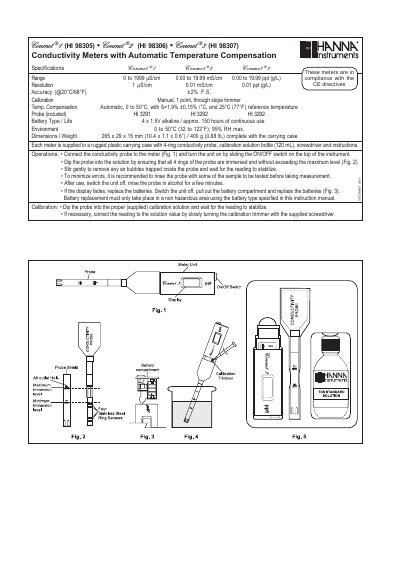

This document provides specifications for three models of Conductivity Meters with Automatic Temperature Compensation: Conmet (HI 98305), Zazmet (HI 98306), and Eremet (HI 98307). The instruments measure conductivity in the range of 0 to 1999 pS/cm, 0.00 to 19.99 mS/cm, or 0.00 to 19.99 ppt (g/L) with a resolution of 1 pS/cm, 0.01 mS/cm, or 0.01 ppt respectively.
| Range | 0 to 1999 pS/cm; 0.00 to 19.99 mS/cm; 0.00 to 19.99 ppt (g/L) |
|---|---|
| Resolution | 1 pS/cm; 0.01 mS/cm; 0.01 ppt (g/L) |
| Accuracy | +/-2% F.S. |
| Calibration | Manual, 1 point, through slope trimmer |
| Temperature Compensation | Automatic, 0 to 50°C, with B=1.9% +0.15% /°C |
| Battery Type | 4x 1.5V alkaline |
| Operating Environment | 0 to 50°C (32 to 122°F); 95% RH max. |
| Dimensions | 265 x 29 x 15 mm (10.4 x 1.1 x 0.6") |
The instruments measure a range from 0 to 1999 pS/cm, which corresponds to 0.00 to 19.99 mS/cm or 0.00 to 19.99 ppt (g/L).
The unit operates for approximately 150 hours of continuous use on four 1.5V alkaline batteries.
The complete unit measures 265 x 29 x 15 mm (10.4 x 1.1 x 0.6") and weighs 400 g (0.88 Ib.).
